- Product Model BTS724GXUMA1
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC PWR SWITCH N-CHAN 1:1 DSO-20
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Status Flag

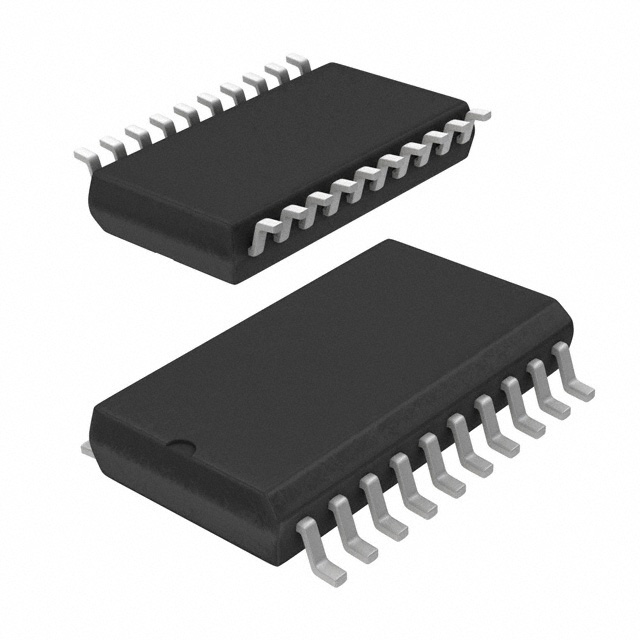

- Package / Case 20-SOIC (0.295", 7.50mm Width)
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 4
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration High Side
- Rds On (Typ) 70mOhm
- Input Type Non-Inverting
- Voltage - Load 5.5V ~ 40V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 3A
- Ratio - Input:Output 1:1
- Supplier Device Package PG-DSO-20
- Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
- Grade Automotive
- Qualification AEC-Q100
Related Products

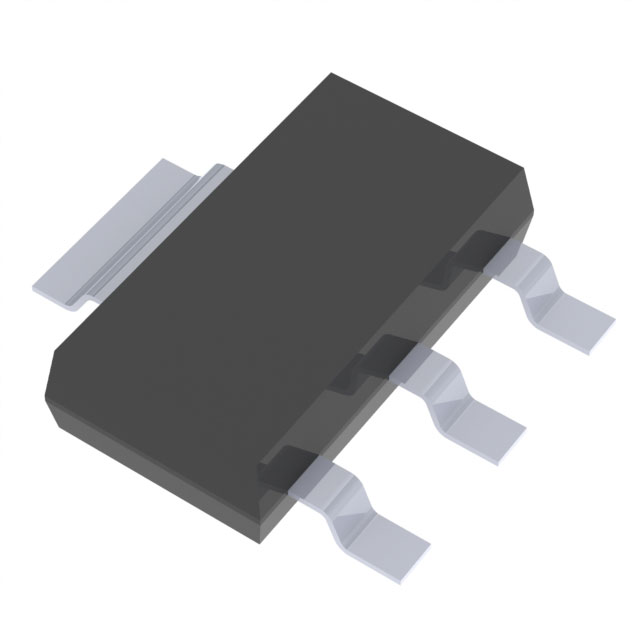

IC PWR SWITCH N-CHAN 1:1 SOT223
Inventory: 3922
IC PWR SWTCH N-CHAN 1:1 SOT223-4
Inventory: 8692
IC PWR HIC-PROFET N-CH 1:1 TO263
Inventory: 5327
IC PWR SWTCH N-CHAN 1:1 TSDSO-14
Inventory: 6775
IC PWR SWITCH N-CHAN 1:1 DSO-20
Inventory: 5225
IC PWR SWITCH N-CHAN 1:1 DSO-20
Inventory: 2316
IC PWR SWITCH N-CHAN 1:1 DSO-20
Inventory: 8467
BTT3018EJXUMA1
Inventory: 6148

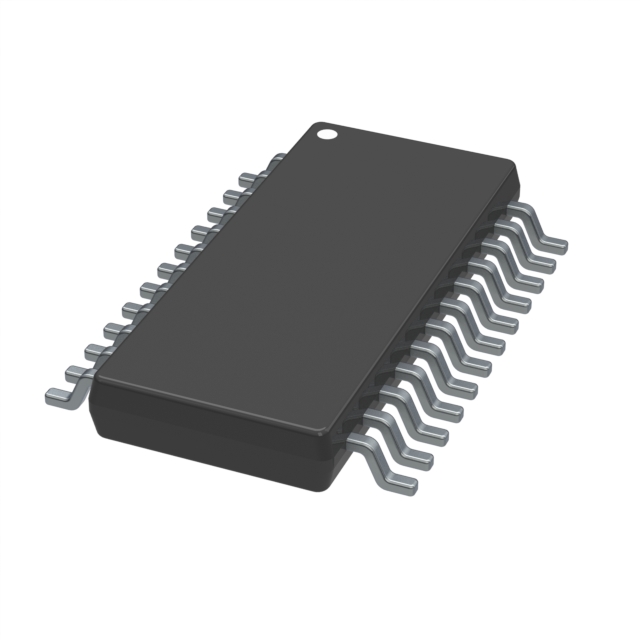

IC PWR SWTCH N-CHAN 1:1 TSDSO-24
