- Product Model BTS3118NHUMA1
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC PWR SWTCH N-CHAN 1:1 SOT223-4
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Package / Case TO-261-4, TO-261AA
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Low Side
- Rds On (Typ) 70mOhm
- Input Type Non-Inverting
- Voltage - Load 42V (Max)
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 2.17A
- Ratio - Input:Output 1:1
- Supplier Device Package PG-SOT223-4
- Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Related Products

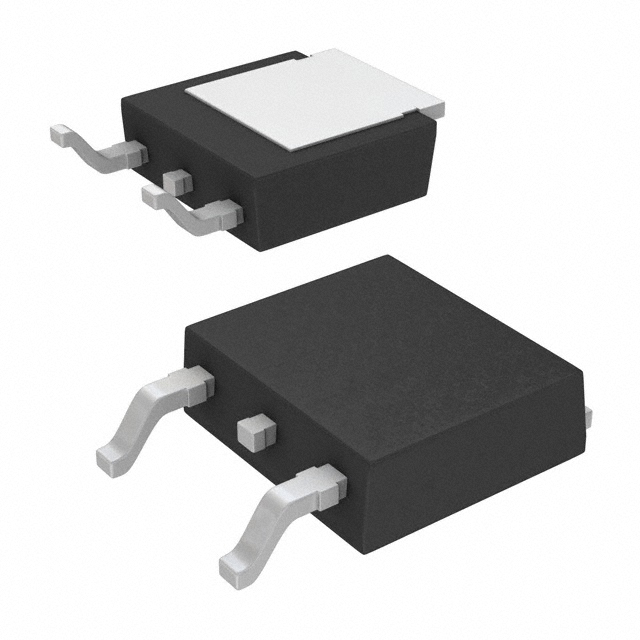

IC PWR SWITCH N-CHAN 1:1 TO252-3
Inventory: 5035

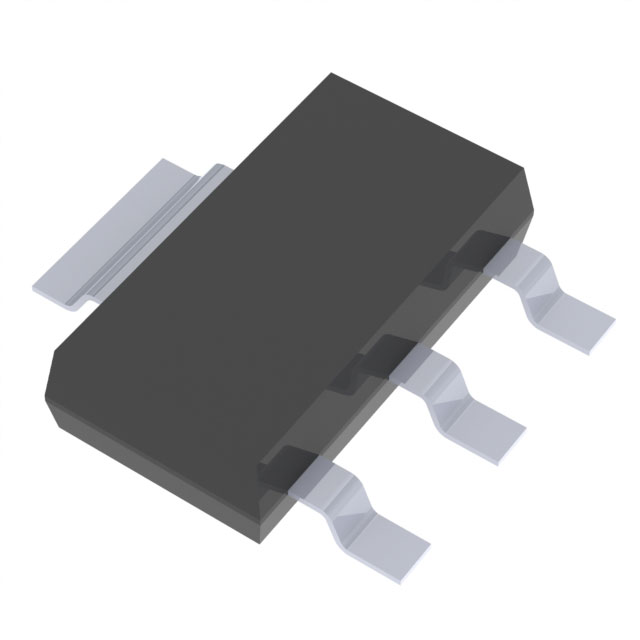

IC PWR SWTCH N-CHAN 1:1 SOT223-4
