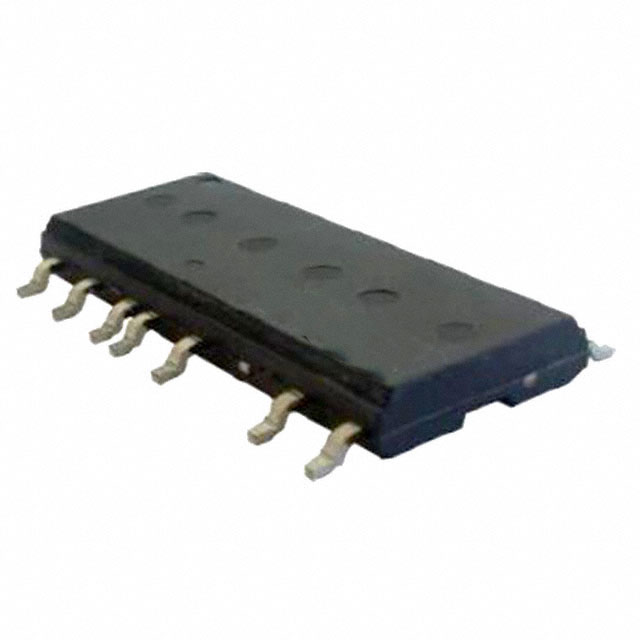

- Product Model IRSM505-084PA-IR
- Brand International Rectifier
- RoHS No
- Description IC HALF BRIDGE DRIVER 4.6A 23SOP
- Classification Full Half-Bridge (H Bridge) Drivers
Inventory:1740
Technical Details
- Features Bootstrap Circuit
- Package / Case 23-PowerSMD Module
- Mounting Type Surface Mount
- Interface Logic
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Half Bridge (3)
- Voltage - Supply 13.5V ~ 16.5V
- Rds On (Typ) 340mOhm LS, 340mOhm HS
- Applications AC Motors
- Current - Output / Channel 4.6A
- Current - Peak Output 15A
- Technology MOSFET (Metal Oxide)
- Voltage - Load 200V (Max)
- Supplier Device Package 23-SOP
- Fault Protection UVLO
- Load Type Inductive
