- Product Model ADG787BCBZ-500RL7
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC SWITCH SPDT X 2 3OHM 10WLCSP
- Classification Analog Switches, Multiplexers, Demultiplexers
-
PDF
Technical Details
- Package / Case 10-UFBGA, WLCSP
- Mounting Type Surface Mount
- Operating Temperature -25°C ~ 85°C (TA)
- On-State Resistance (Max) 3Ohm
- -3db Bandwidth 145MHz
- Supplier Device Package 10-WLCSP (2x1.5)
- Voltage - Supply, Single (V+) 1.8V ~ 5.5V
- Charge Injection 14pC
- Crosstalk -110dB @ 1MHz
- Switch Circuit SPDT
- Multiplexer/Demultiplexer Circuit 2:1
- Channel-to-Channel Matching (ΔRon) 20mOhm
- Switch Time (Ton, Toff) (Max) 19ns, 5ns
- Channel Capacitance (CS(off), CD(off)) 16pF
- Current - Leakage (IS(off)) (Max) 50pA (Typ)
- Number of Circuits 2
Related Products
IC CMOS 2 CIRCUIT 8WLCSP
Inventory: 2105
IC SWITCH SPDT X 2 3OHM 10WLCSP
Inventory: 0
IC SWITCH SPDT X 2 3OHM 10WLCSP
Inventory: 0
IC SWITCH SPDT X 2 3OHM 10MSOP
Inventory: 4790

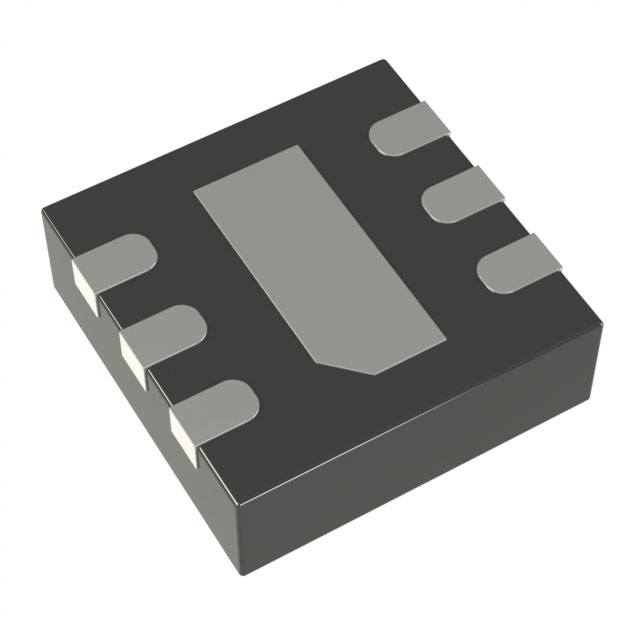

IC VREF SERIES 0.1% 6DFN
Inventory: 225
IC BATT MON LI-ION 1CELL 9WLP
Inventory: 3339

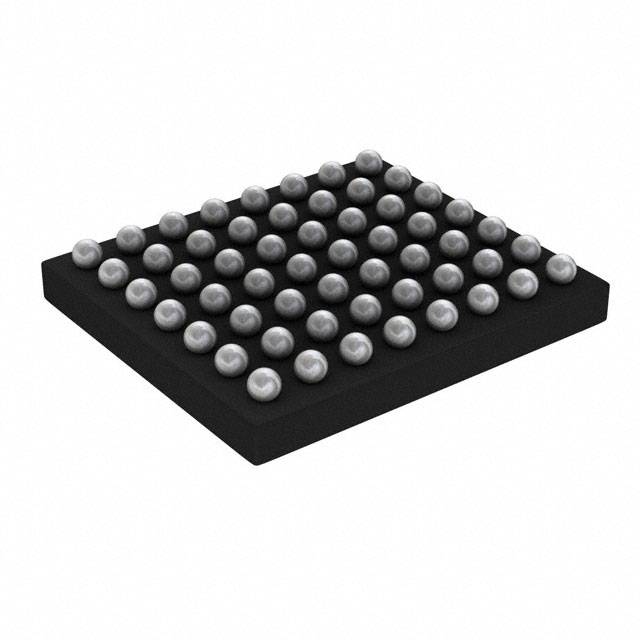

IC BATT PWR MGMT 56WLP
