Technical Details

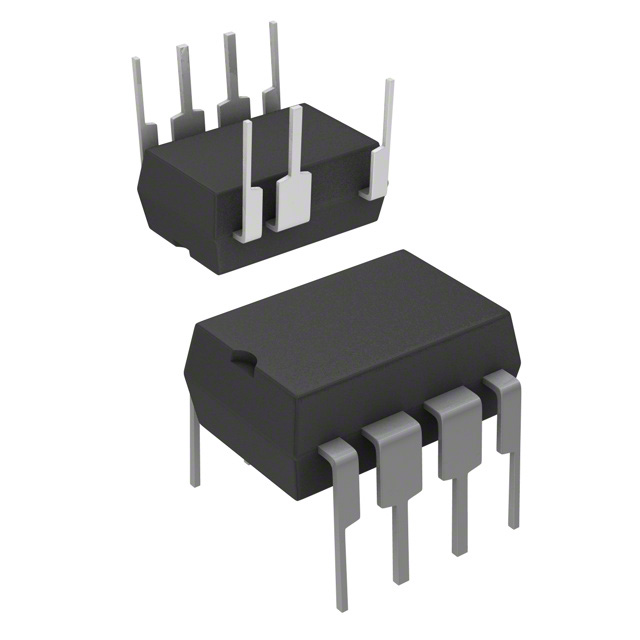

• Package / Case 8-DIP (0.300", 7.62mm), 7 Leads
• Mounting Type Through Hole
• Operating Temperature -25°C ~ 150°C (TJ)
• Duty Cycle 72%
• Frequency - Switching 100kHz
• Internal Switch(s) Yes
• Voltage - Breakdown 800V
• Output Isolation Isolated
• Topology Flyback
• Voltage - Supply (Vcc/Vdd) 8.5V ~ 21V
• Supplier Device Package PG-DIP-7-1
• Fault Protection Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage
• Voltage - Start Up 13.5 V
• Control Features Soft Start
• Power (Watts) 50 W
