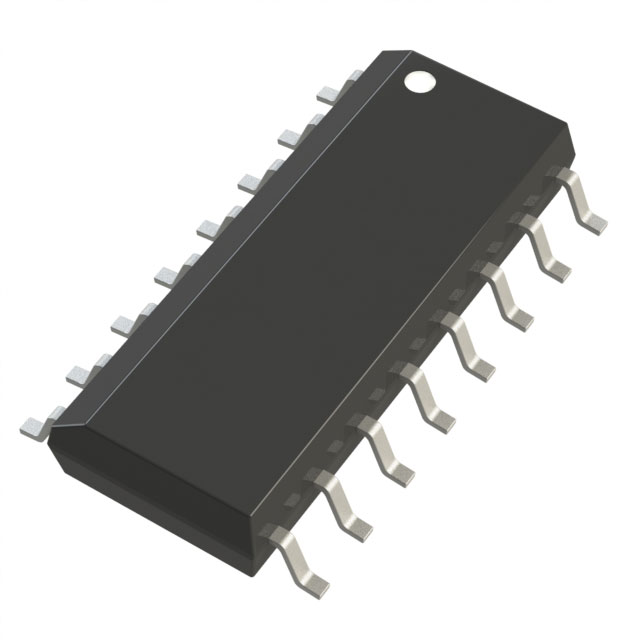

- Product Model ADG1308BRZ-REEL7
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC MUX 8:1 210OHM 16SOIC
- Classification Analog Switches, Multiplexers, Demultiplexers
-
PDF
Technical Details
- Package / Case 16-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 105°C (TA)
- On-State Resistance (Max) 210Ohm
- -3db Bandwidth 500MHz
- Supplier Device Package 16-SOIC
- Voltage - Supply, Single (V+) 5V ~ 16.5V
- Voltage - Supply, Dual (V±) ±5V ~ 16.5V
- Charge Injection 2pC
- Crosstalk -80dB @ 1MHz
- Multiplexer/Demultiplexer Circuit 8:1
- Channel-to-Channel Matching (ΔRon) 5Ohm
- Switch Time (Ton, Toff) (Max) 100ns, 100ns
- Channel Capacitance (CS(off), CD(off)) 15pF, 20pF
- Current - Leakage (IS(off)) (Max) 1nA
- Number of Circuits 1
