Technical Details

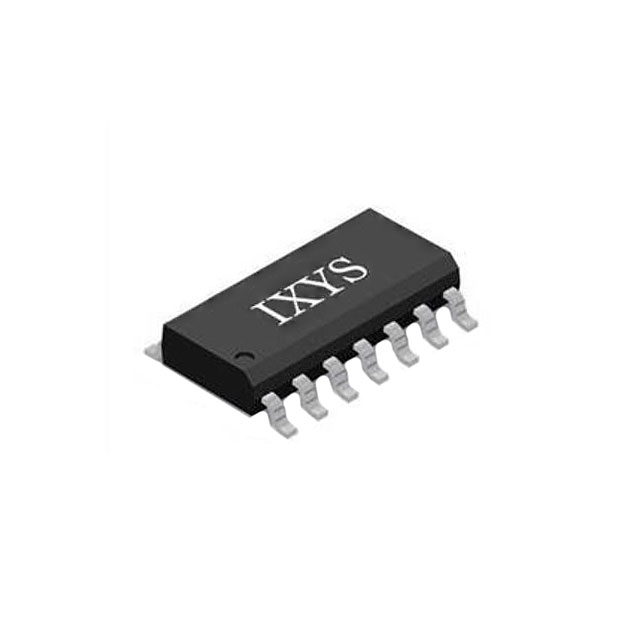

• Package / Case 14-SOIC (0.154", 3.90mm Width)
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 150°C (TJ)
• Voltage - Supply 10V ~ 20V
• Input Type Non-Inverting
• High Side Voltage - Max (Bootstrap) 600 V
• Supplier Device Package 14-SOIC
• Rise / Fall Time (Typ) 40ns, 20ns
• Channel Type Synchronous
• Driven Configuration Half-Bridge
• Number of Drivers 2
• Gate Type IGBT, N-Channel MOSFET
• Logic Voltage - VIL, VIH 0.8V, 2.5V
• Current - Peak Output (Source, Sink) 1.9A, 2.3A
• DigiKey Programmable Not Verified
