- Product Model MAX16813BATP/V+
- Brand Maxim Integrated / Analog Devices
- RoHS Yes
- Description IC LED DRV CTRL PWM 150MA 20TQFN
- Classification LED Drivers
-
PDF
Inventory:1980
Technical Details

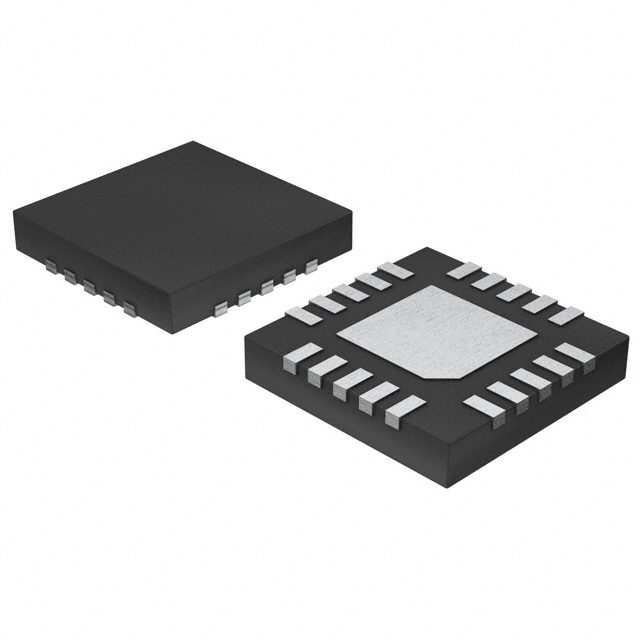

- Package / Case 20-WFQFN Exposed Pad
- Mounting Type Surface Mount
- Number of Outputs 4
- Frequency 200kHz ~ 2MHz
- Type DC DC Controller
- Operating Temperature -40°C ~ 125°C (TA)
- Applications Backlight, Lighting
- Current - Output / Channel 150mA
- Internal Switch(s) No
- Topology SEPIC, Step-Up (Boost)
- Supplier Device Package 20-TQFN (4x4)
- Dimming PWM
- Voltage - Supply (Min) 4.75V
- Voltage - Supply (Max) 40V
- Grade Automotive
- Qualification AEC-Q100
Related Products
IC REG LINEAR 3.3V 1A 8HTSOP
Inventory: 12235
IC LED DRV CTRL PWM 150MA 20TQFN
Inventory: 490
IC LED DRV CTRL PWM 150MA 20TQFN
Inventory: 3413
IC LED DRV CTRL PWM 150MA 20TQFN
Inventory: 0

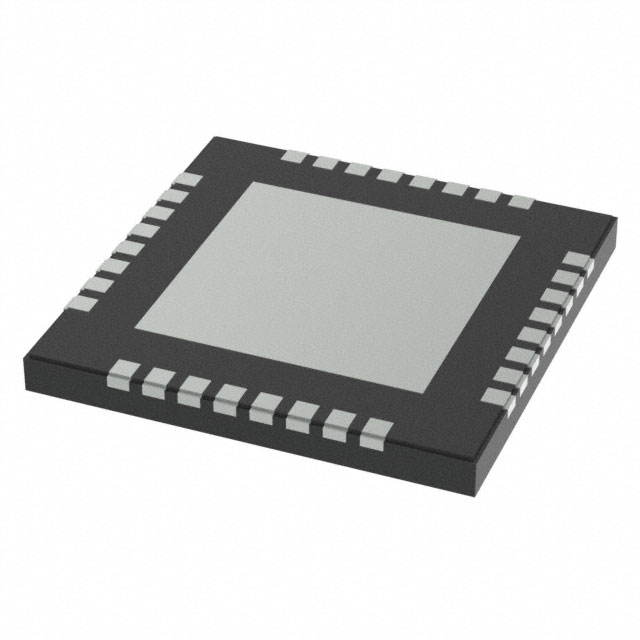

IC LED DRIVER CTRLR PWM 32TQFN
