- Product Model MP8042DF-LF-P
- Brand MPS (Monolithic Power Systems)
- RoHS Yes
- Description IC HALF BRIDGE DRIVER 20TSSOPF
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Inventory:1500
Technical Details
- Features Status Flag

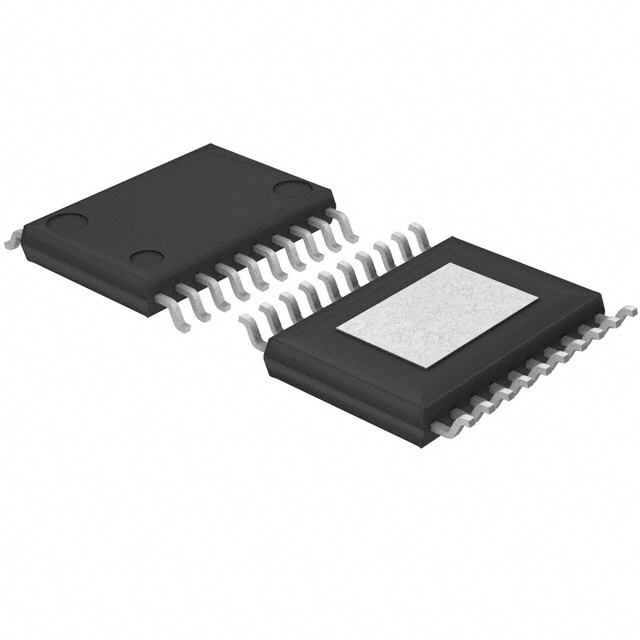

- Package / Case 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Mounting Type Surface Mount
- Interface PWM
- Operating Temperature -40°C ~ 125°C (TJ)
- Output Configuration Half Bridge (2)
- Voltage - Supply 7.5V ~ 24V
- Rds On (Typ) 150mOhm
- Applications General Purpose
- Current - Peak Output 5A
- Technology Power MOSFET
- Voltage - Load 7.5V ~ 24V
- Supplier Device Package 20-TSSOPF-EP
- Fault Protection Current Limiting, Over Temperature, UVLO
- Load Type Inductive
