Technical Details

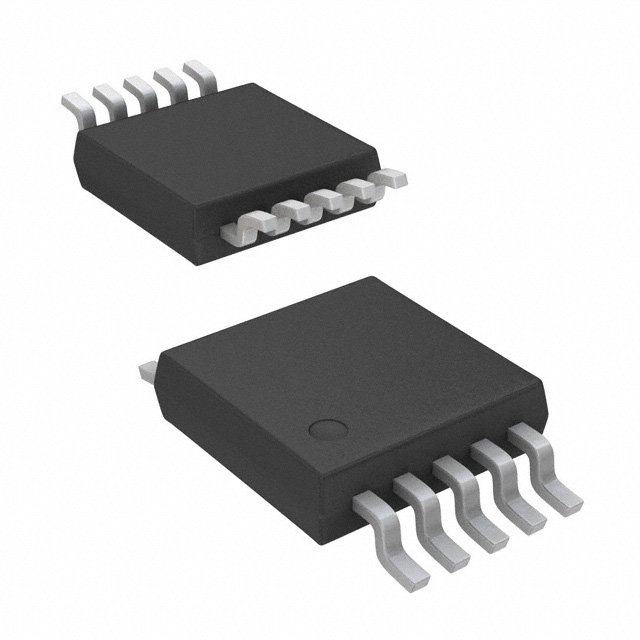

• Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 85°C (TA)
• On-State Resistance (Max) 50Ohm
• Supplier Device Package 10-MSOP
• Voltage - Supply, Single (V+) 2.7V ~ 12V
• Charge Injection 1.2pC
• Crosstalk -85dB @ 1MHz
• Switch Circuit DPDT
• Multiplexer/Demultiplexer Circuit 2:2
• Channel-to-Channel Matching (ΔRon) 500mOhm
• Switch Time (Ton, Toff) (Max) 25ns, 24ns (Typ)
• Channel Capacitance (CS(off), CD(off)) 4pF, 6pF
• Current - Leakage (IS(off)) (Max) 3nA
• Number of Circuits 1
