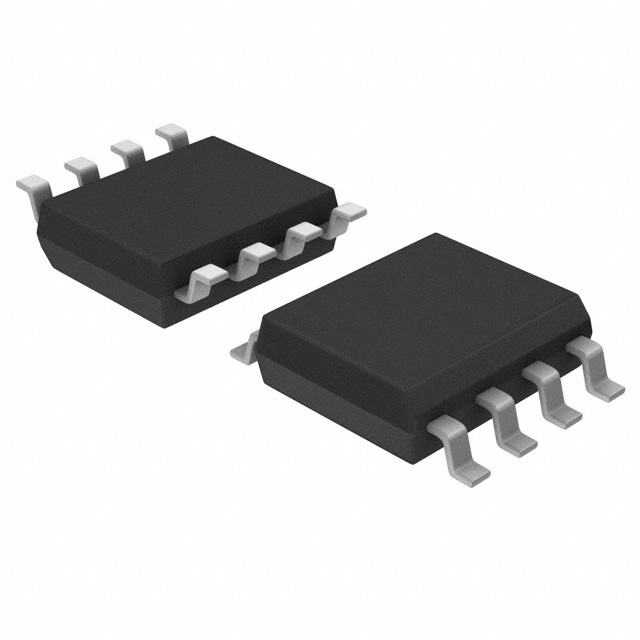

- Product Model EL7158ISZ-T7
- Brand Intersil (Renesas Electronics Corporation)
- RoHS Yes
- Description IC GATE DRVR HI/LOW SIDE 8SOIC
- Classification Gate Drivers
-
PDF
Technical Details
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TJ)
- Voltage - Supply 4.5V ~ 12V
- Input Type Non-Inverting
- Supplier Device Package 8-SOIC
- Rise / Fall Time (Typ) 12ns, 12.2ns
- Channel Type Single
- Driven Configuration High-Side or Low-Side
- Number of Drivers 1
- Gate Type IGBT
- Logic Voltage - VIL, VIH 0.8V, 2.4V
- Current - Peak Output (Source, Sink) 12A, 12A
- DigiKey Programmable Not Verified
