- Product Model TLV76701DRVT
- Brand Texas Instruments
- RoHS Yes
- Description IC REG LINEAR POS ADJ 1A 6WSON
- Classification Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Technical Details
- Package / Case 6-WDFN Exposed Pad
- Output Type Adjustable
- Mounting Type Surface Mount
- Current - Output 1A
- Operating Temperature -40°C ~ 125°C (TJ)
- Output Configuration Positive
- Current - Quiescent (Iq) 80 µA
- Voltage - Input (Max) 16V
- Number of Regulators 1
- Supplier Device Package 6-WSON (2x2)
- Voltage - Output (Max) 13.6V
- Voltage - Output (Min/Fixed) 0.8V
- Control Features Enable
- PSRR 70dB (120Hz)
- Voltage Dropout (Max) 1.4V @ 1A
- Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Current - Supply (Max) 1.5 mA
Related Products
IC ACTIVE BIAS CONTROLLER 16QFN
Inventory: 991
IC OPAMP GP 1 CIRCUIT 20HSOIC
Inventory: 2756

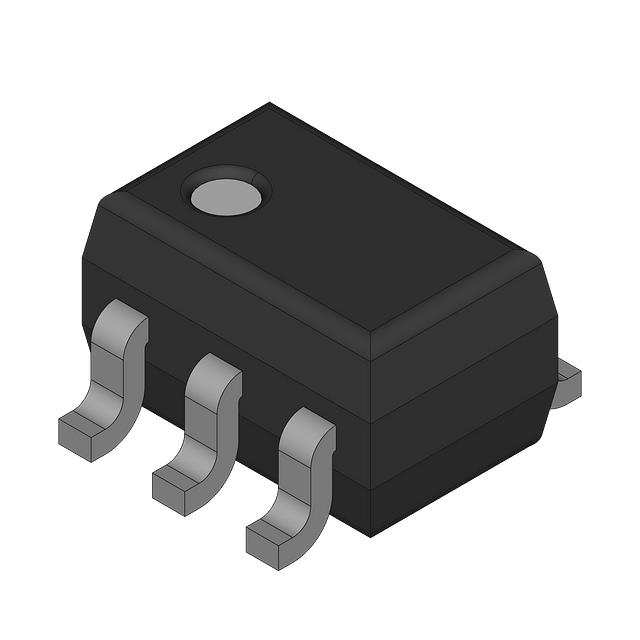

IC GATE OR 1CH 2-INP SC70-5
Inventory: 3297

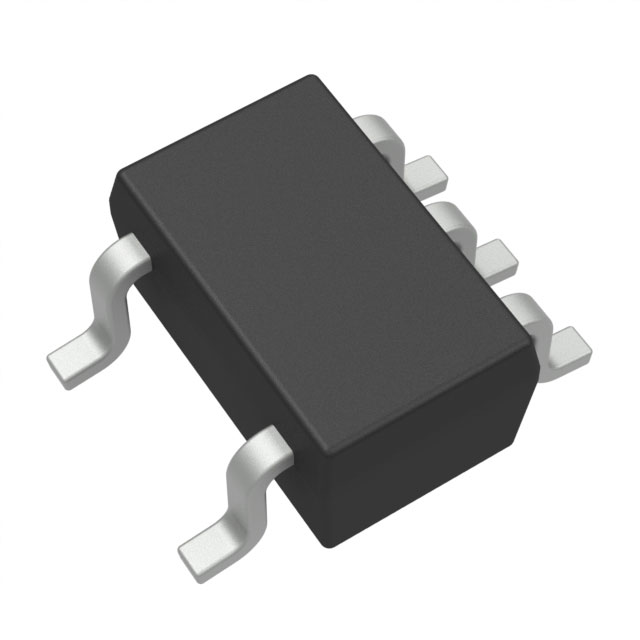

IC GATE OR 1CH 2-INP SC70-5
