- Product Model NCV7726DQAR2G
- Brand Sanyo Semiconductor/onsemi
- RoHS Yes

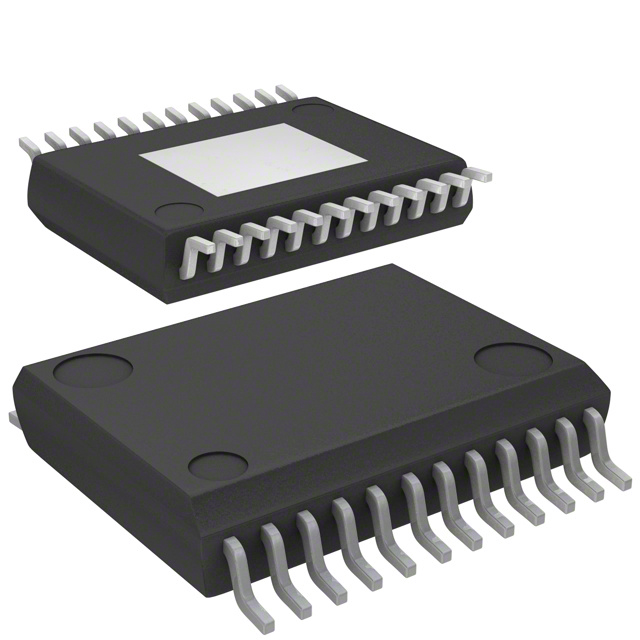

- Description IC HALF BRIDGE DRVR 500MA 24SSOP
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details
- Features Charge Pump
- Package / Case 24-LSSOP (0.154", 3.90mm Width) Exposed Pad
- Mounting Type Surface Mount
- Interface Logic, SPI
- Operating Temperature -40°C ~ 125°C (TJ)
- Output Configuration Half Bridge (12)
- Voltage - Supply 3.15V ~ 5.25V
- Rds On (Typ) 850mOhm LS, 850mOhm HS
- Applications DC Motors, General Purpose
- Current - Output / Channel 500mA
- Current - Peak Output 1.1A
- Technology NMOS
- Voltage - Load 5.5V ~ 32V
- Supplier Device Package 24-SSOP-EP
- Fault Protection Over Current, Over Temperature, Over Voltage, UVLO
- Load Type Inductive
- Grade Automotive
- Qualification AEC-Q100
