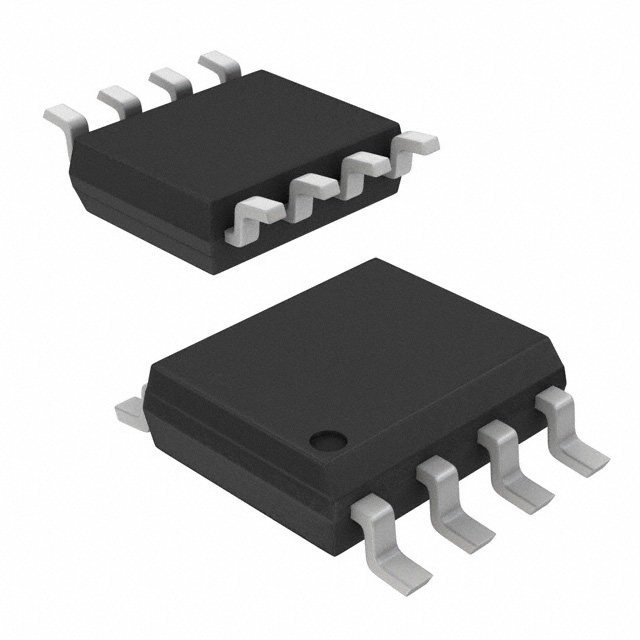

- Product Model EL7242CSZ-T7
- Brand Intersil (Renesas Electronics Corporation)
- RoHS Yes
- Description IC GATE DRVR LOW-SIDE 8SOIC
- Classification Gate Drivers
-
PDF
Technical Details
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TJ)
- Voltage - Supply 4.5V ~ 16V
- Input Type Inverting, Non-Inverting
- Supplier Device Package 8-SOIC
- Rise / Fall Time (Typ) 10ns, 10ns
- Channel Type Independent
- Driven Configuration Low-Side
- Number of Drivers 2
- Gate Type N-Channel, P-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.4V
- Current - Peak Output (Source, Sink) 2A, 2A
- DigiKey Programmable Not Verified
Related Products
IC FF D-TYPE DUAL 1BIT 14DIP
Inventory: 5055

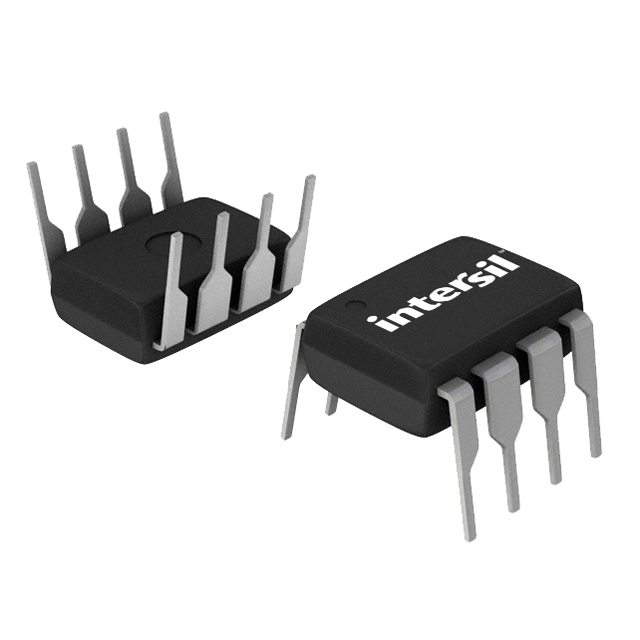

IC GATE DRVR LOW-SIDE 8DIP
