- Product Model 74LVC1G14Z-7
- Brand Zetex Semiconductors (Diodes Inc.)
- RoHS Yes
- Description IC INVERT SCHMITT 1CH 1IN SOT553
- Classification Gates and Inverters
-
PDF
Inventory:26889
Technical Details
- Features Schmitt Trigger

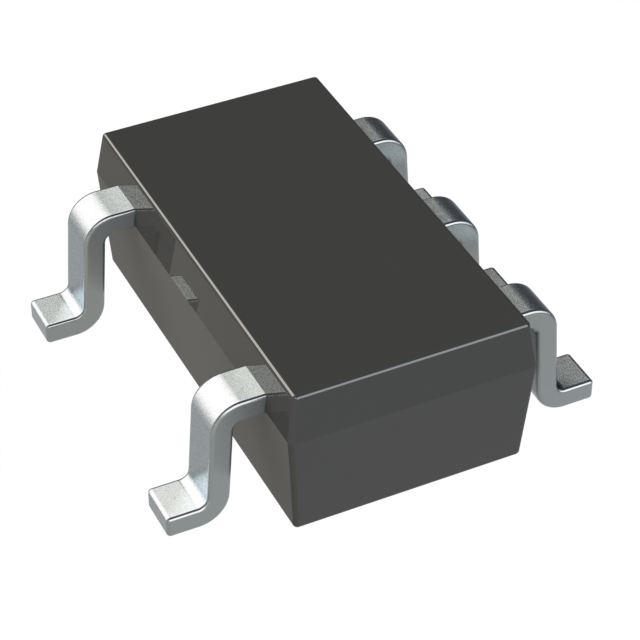

- Package / Case SOT-553
- Mounting Type Surface Mount
- Logic Type Inverter
- Operating Temperature -40°C ~ 125°C (TA)
- Voltage - Supply 1.65V ~ 5.5V
- Current - Output High, Low 32mA, 32mA
- Number of Inputs 1
- Supplier Device Package SOT-553
- Input Logic Level - High 1.2V ~ 3.33V
- Input Logic Level - Low 0.3V ~ 1.45V
- Max Propagation Delay @ V, Max CL 6.5ns @ 5V, 50pF
- Number of Circuits 1
- Current - Quiescent (Max) 10 µA
