Technical Details

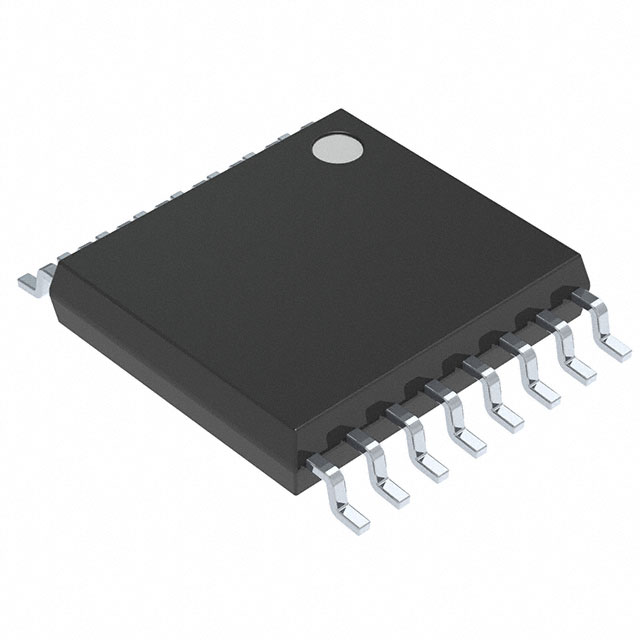

• Package / Case 14-TSSOP (0.173", 4.40mm Width)
• Output Type Complementary
• Mounting Type Surface Mount
• Number of Elements 2
• Function Set(Preset) and Reset
• Type D-Type
• Operating Temperature -40°C ~ 125°C (TA)
• Voltage - Supply 2V ~ 6V
• Current - Quiescent (Iq) 2 µA
• Current - Output High, Low 7.8mA, 7.8mA
• Trigger Type Positive Edge
• Clock Frequency 105 MHz
• Input Capacitance 5 pF
• Supplier Device Package 14-TSSOP
• Max Propagation Delay @ V, Max CL 15ns @ 6V, 50pF
• Grade Automotive
• Number of Bits per Element 1
• Qualification AEC-Q100
