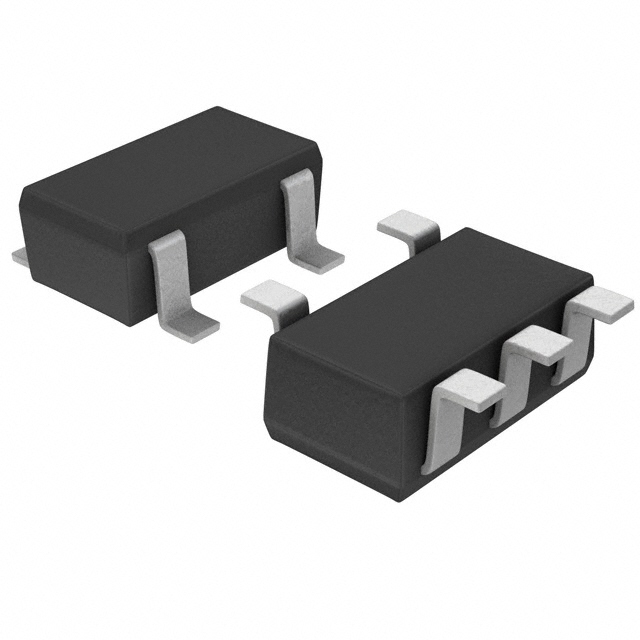

- Product Model R5524N002B-TR-FE
- Brand RICOH/Nisshinbo Micro Devices
- RoHS Yes
- Description IC PWR SWITCH N-CHAN 1:1 SOT23-5
- Classification Power Distribution Switches, Load Drivers
-
PDF
Inventory:4744
Technical Details
- Package / Case SC-74A, SOT-753
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Switch Type USB Switch
- Operating Temperature -40°C ~ 85°C (TA)
- Output Configuration High Side
- Rds On (Typ) 100mOhm
- Input Type Non-Inverting
- Voltage - Load 2.2V ~ 5.5V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 800mA
- Ratio - Input:Output 1:1
- Supplier Device Package SOT-23-5
- Fault Protection Over Current, Over Temperature, Reverse Current, UVLO
